Yalos LCD Glass: Innovation and efficiency for modern spaces
If the growing demand for versatility and transparency in “open space” architecture is what you need to address, the style with which Yalos LCD glass enhances these characteristics and illuminates spaces and walls offers the highest level of efficiency and functionality.
In environments that require ease of use and elegance, the effectiveness of LCD glass and its ability to adapt, being either opaque or transparent, display or screen as needed, makes a difference.
The LCD product consists of two extra-clear float glass panels, each 4 millimeters or more in thickness, bonded over their entire surface with EVA (Ethylene-Vinyl-Acetate) sheets containing an additional liquid crystal film. This is known as LPF or, in common use, LCD. Its standout feature is its ability to change state from opaque to transparent when an electric field is applied to the surface.
Another essential feature is the ability to function as a screen for rear projection of images from multimedia devices. This typical property is especially prominent in the OFF “opaque” state but can also be used, though with less image vibrancy, in the ON “transparent” state.
COMMERCIAL
INDOOR
PARTITION WALLS
NAUTICAL
PUBLIC
RESIDENTIAL
CATERING
Solution for offices, private spaces, and commercial environments

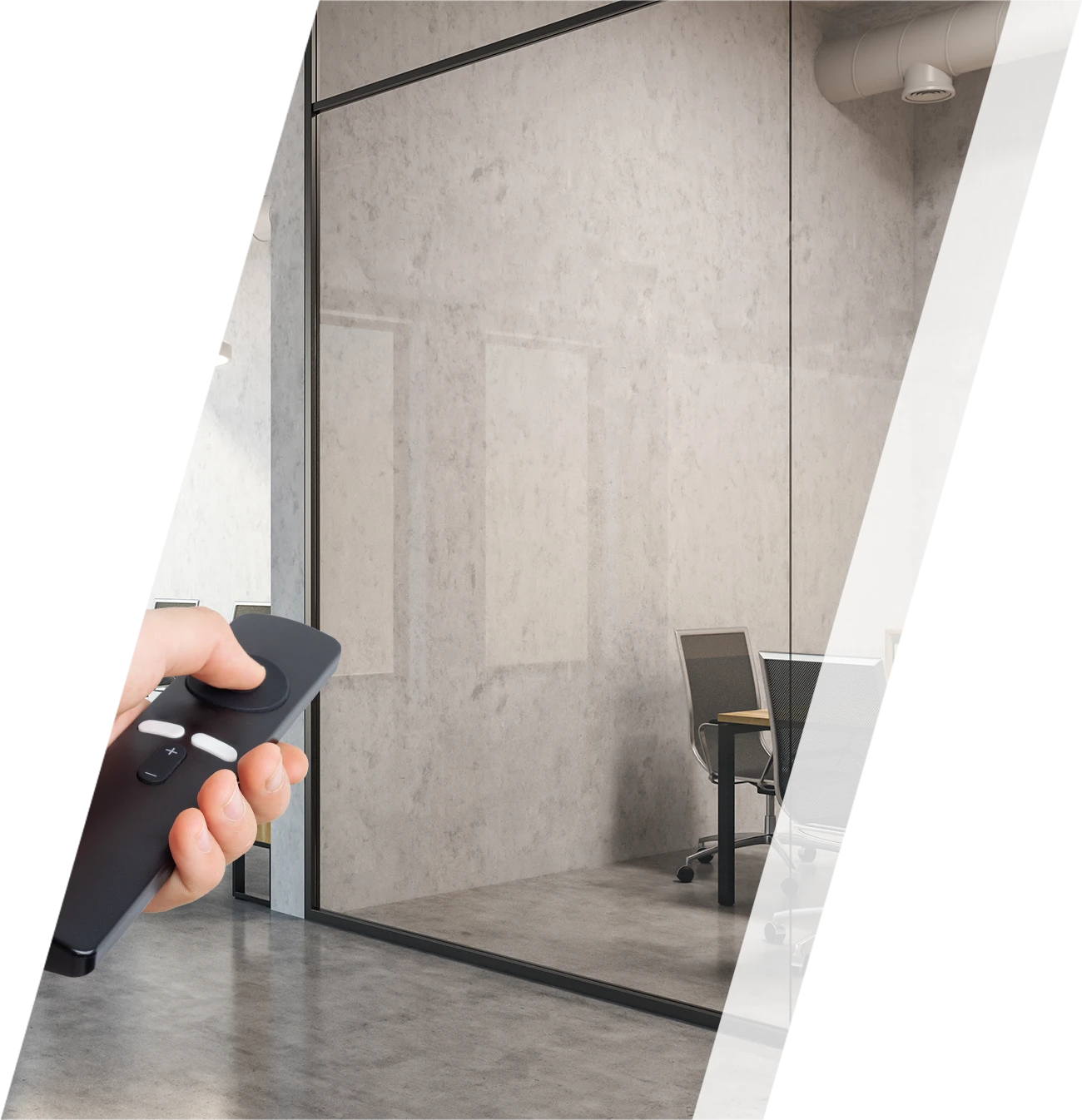

Yalos LCD glass is highly sought after for its ability to create open and visible spaces and workstations that can also be isolated when needed. This makes LCD glass an ideal solution for offices and private residences, where architectural design and aesthetic needs lead to replacing traditional masonry walls.
Moreover, it is used in commercial spaces—such as shop windows and fitting rooms, display cases and showcases—and in yacht windows, including large panes, doors, and partitions. It represents the best solution for combining practical and aesthetic needs in public, private, and commercial environments, making them easily accessible and well-structured without sacrificing beauty, elegance, and transparency. In these settings, technology performs the magic of elevating both usability and high-level aesthetics to the same plane.
Maximum dimensions 3200 x 1525 mm
Minimum thickness 9.3 mm
Maximum power consumption 3-5 W/m²
Operating temperature -10°C to +50°C
Operating voltage 60VAC, 50Hz, sinusoidal
Glass ON: Total transmission >75%, Haze <5%, Response <0.1 sec
Glass OFF: Total light 55% (+/- 5%), Direct light (1° Collection Angle) <1%
